Power Pallet ..... The Super Efficient Die Loading System that eliminates the need for Die Carts and Decreases Die Changover time

Example of Power Pallet Mounted on a Forklift Image Pacesetter Systems, Inc. presents a truly revolutionary and innovative product that is sure to decrease your die changeover time more than ever before. The Power Pallet is an impressive machine that makes loading and unloading dies a breeze.

While traditional die carts have reduced die changeover time, they are not without limitations and costs. For one, most are large in size, so they usually take up an undesired amount of space in one's shop. In addition, because of their large size and mobility, they are often quite expensive, which can be a financial burden on any business owner, who wished to yield costs and increase profits.
However, the Power Pallet provides enhanced mobility, reduced die changeover time, a large loading capacity, and all in a relatively small size. Talk about packing in a punch! It's designed to easily attach to a Forklift, thus more than half the size and cost needed for the mobility of a typical die cart is immediately eliminated. Once on the Forklift, the Pallet then simply is docked on to the bolster, at which then your dies are ready to be loaded and unloaded on to your press with precision, and at the speed of your choice, all with the push of a button! This simple and efficient method virtually eliminates the strain on your workforce and dramatically reduces downtime in between die changes; and it's small and easy to store! Large Close-Up of Power Pallet Image

Totally eliminates manual alignment when used with Die Align.
Click this button to request a quote right now! Click this button to request more information

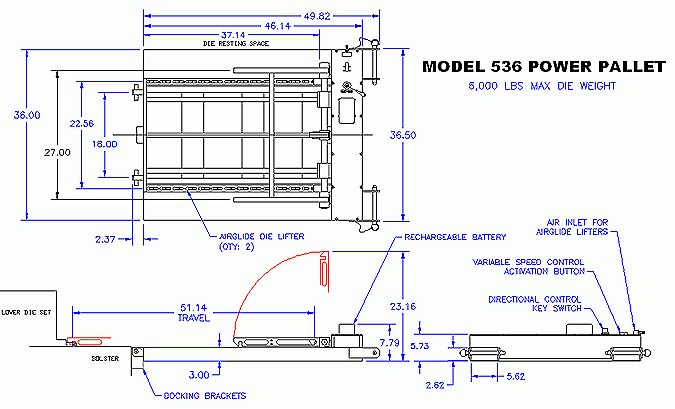

Diagram of the Power Pallet Model 536

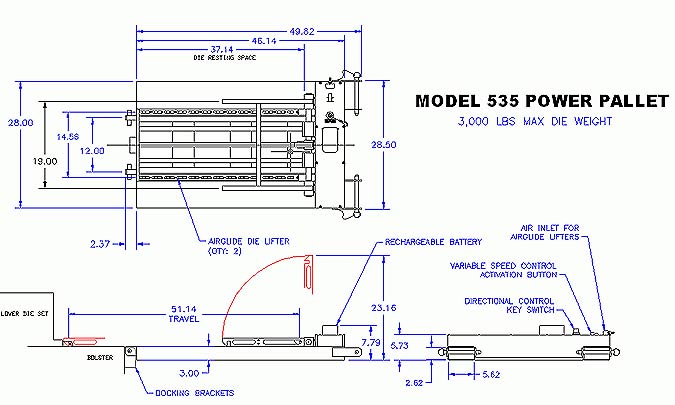

Diagram of the Power Pallet Model 535
