Air Die Lifters
Pacesetter Systems Manufactures the Worlds Strongest Quick Die Change Systems and Air Die Lifters


For applications where hydraulic clamps are not preferable or available. Used with U-flange or ledge type dies.  Uses exclusive torque reducing thrust bearing with 1/8 turn clamping action. Available in several sizes and configurations to handle a wide variety of die sizes.

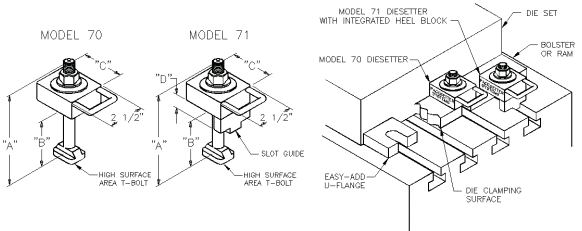

Model
No.

T-Slot
Bolt
Size

Load Capacity



Series        Load

"A"
T-Slot
Bolt
Length

"B"
Grip Length - Total
Including T-Slot
Throat Height
Min            Max

Hex Nut Size
(
Thread Size)

Torque
Ft. Lbs.


"C"
Clamp
Arm
 Length

"D"
(Mod 71 only)
Height of Die
 Clamping Ledge

70

5/8

5/8
Gold


10 Tons
*


3 1/2
4
5

0.9
1.4
2.3

1.9
2.4
3.4

1 1/16 Hex
(5/8-11 Thd.)


80



2 1/2



Specified
by
User

70

3/4

3/4
Blue

6 1/2 Tons
*


4
5
6
7

0.5
0.5
1.4
2.4

1.75
2.75
3.75
4.75

1 5/8 Hex
(3/4-10 Thd.)



125




3 1/2




Specified
by
User


70

3/4

3/4
Gold

15 Tons
*



4
5
6
7

0.5
0.5
1.4
2.4

1.75
2.75
3.75
4.75

1 5/8 Hex
(3/4-10 Thd.)



125




3 1/2




Specified
by
User


70

1"

1" Blue

8 1/2 Tons
*


4
5
6
7

0.5
0.5
1.4
2.4

1.75
2.75
3.75
4.75

1 5/8 Hex
(7/8-9 Thd.)



150




3 1/2




Specified
by
User


70

1"

1" Red

10 1/2 Tons
*


4
5
6
7

0.5
0.5
1.4
2.4

1.75
2.75
3.75
4.75

1 5/8 Hex
(1'-8 Thd.)



150




3 1/2




Specified
by
User


70

1"

1" Gold

18  Tons
*


4
5
6
7

0.5
0.5
1.4
2.4

1.75
2.75
3.75
4.75

1 5/8 Hex
(7/8'-9 Thd.)



150




3 1/2




Specified
by
User


70

1"

1" Green

22 Tons
*


4
5
6
7

0.5
0.5
1.4
2.4

1.75
2.75
3.75
4.75

1 5/8 Hex
(1'-8 Thd.)



150




3 1/2




Specified
by
User


* Load capacity of model 71 is 60% of that shown above

Use when a variety of gripping heights are needed from a mechanical clamp.  Excellent alternative when mechanical clamping is preferred.  Accommodates a wide variety of ledge flange thickness. Clamps quickly and easily. Precision built for a lifetime of reliable, hassle-free operation.

View a demonstration!
Play Video
